Grow GM67 USB Uart Interface 1d 2D Barcode Scanner Module

Place of Origin : China

Certification : CE

MOQ : 1

Packaging Details : Carton

Delivery Time : Peak Season Lead Time: within 15 workdays Off Season Lead Time: within 15 workdays

Payment Terms : T/T, PayPal

Supply Ability : 5000

Operating Current : 180mA

Interface : USB/Uart

Resolution : 5mil

Size : 46.5*27.5*14mm

Transport Package : Standard Export Carton Package

Specification : Black

Trademark : GROW

Origin : China

HS Code : 8473309000

Interface Type : Uart, USB

Scan Element Type : CMOS

Operating Voltage : 5V

Samples : US$ 17/Piece 1 Piece(Min.Order) |

Customization : Available | Customized Request

Shipping Cost : about shipping cost and estimated delivery time.

Payment Method : Initial Payment Full Payment

Currency : US$

Return&refunds : You can apply for a refund up to 30 days after receipt of the products.

Contact Now

Description

1. USB wired barcode scanner to capture 1D, 2D code on labels, paper, mobile phone or computer.

2. High-efficiency recognization and high upload speed for improving your working efficiency.

3. With buzzer for reminding you that the scanning successfully or not.

4. Compatible with USB and UART interface.

5. Over 180 configurable options

6. Macro support replace a string in the bar code with another

7. Programmable preamble postamble and termination strings

8.Superior reading performance utilizing advanced decoding algorithms

Specifications

Scanning Performance	Scan Mode		640*480 CMOS
	Lighting		White LED
	Collimate		Red LED
	Read Code Type	2D	QR Code, Data Matrix, PDF417,Aztec,Micro QR,Micro PDF417
		1D	EAN,UPC,Code 39,Code 93,Code 128,UCC/EAN 128, Codabar,
			Interleaved 2 of 5, ITF-6,ITF-14,ISBN,ISSN, MSI-Plessey
			GS1 Databar ,Code 11,Industrial 25,
			Standard 25,Plessey, Matrix 2 of 5
	Accuracy of reading		≥5mil
	Depth of Field	EAN-13	60mm-220mm (13mil)
		Code 39	40mm-90mm (5mil 10 byte)
		QR Code	30mm-220mm (20mil 16 byte)
		Data Marix	40mm-110mm (10mil 20 byte)
		PDF417	30mm-130mm (6.67mil 7 byte)
	Contrast		≥25%
	Scanning angle		Intersection angle 360°,Elevation ± 55° Deflection angle ± 55°
	Viewing Angle		D:42° H:34° V:26°
Mechanical/ Electrical Parameters	Interface		TTL-232 , USB (HID-KBW, Virtual serial port)

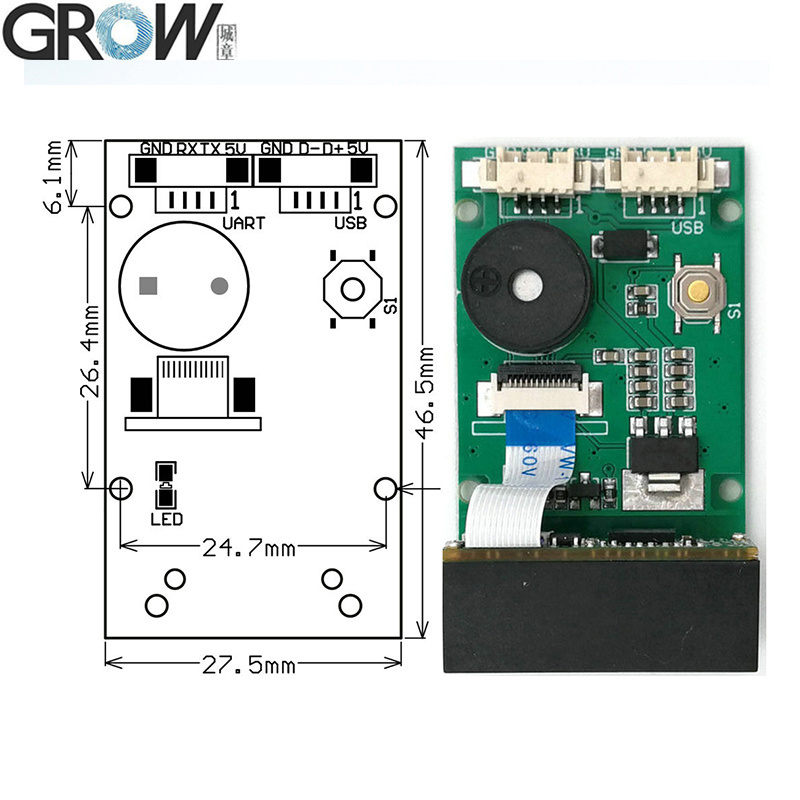

	Dimension		27.5(W)46.5(D)14(H)mm
	Operating Voltage		DC 5 V
	Operating Current		180mA
	Standby Current		USB:25mA; TTL:10mA
Environmental Parameters	Operating Temperature		-20ºC~+50ºC
	Storage Temperature		-40ºC~+70ºC
	Operating Humidity		5%~95%(Non-Condensing)
	Environmental Light		0~100000LUX

Files

·Provide User Manual

You can download the GM67 user manual from this website link:
https://hzgrow.en.made-in-china.com

GM67 Operation Video on Youtube: https://youtu.be/nlZAcnFSypo

GM65 Operation Video on Youtube: https://youtu.be/8S2HvjtlIe4

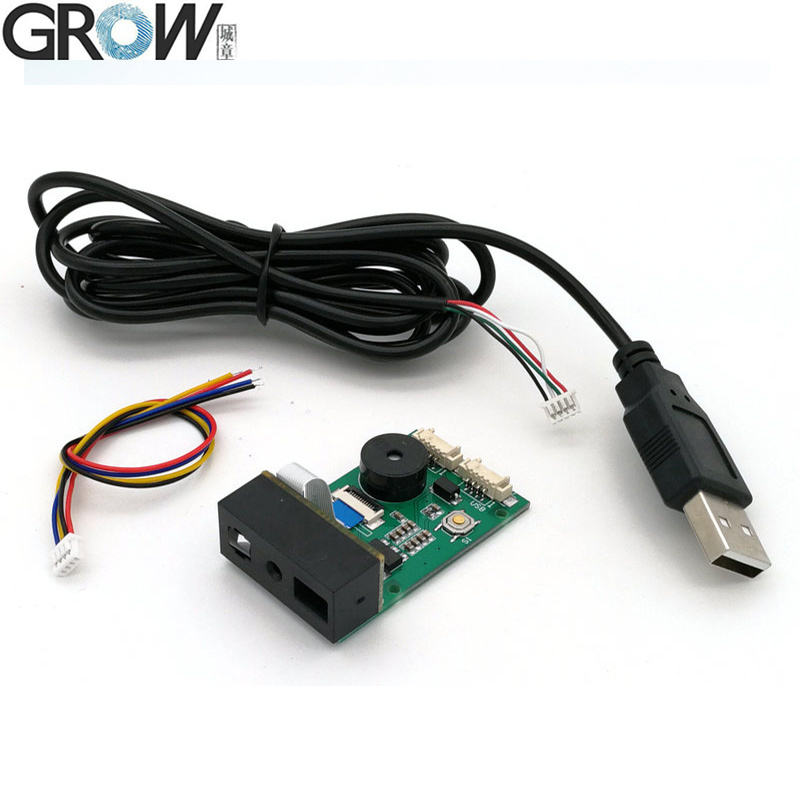

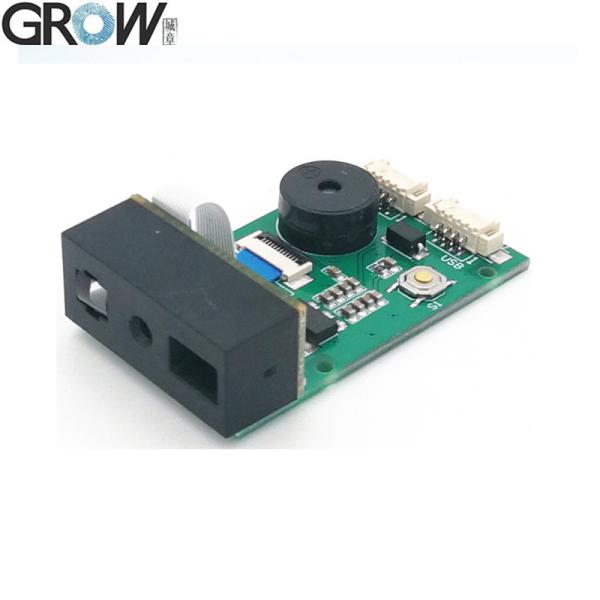

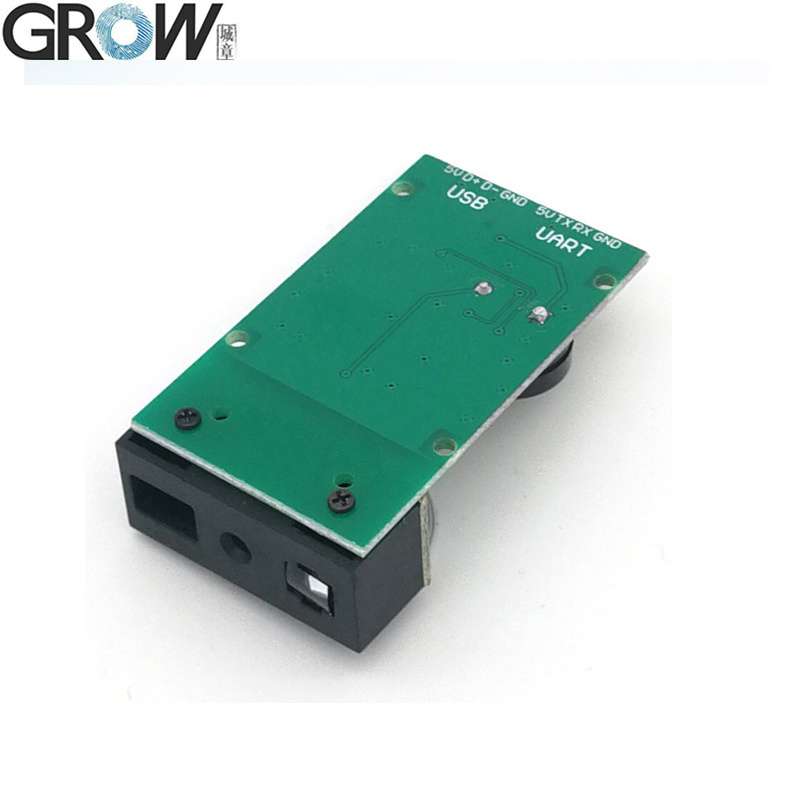

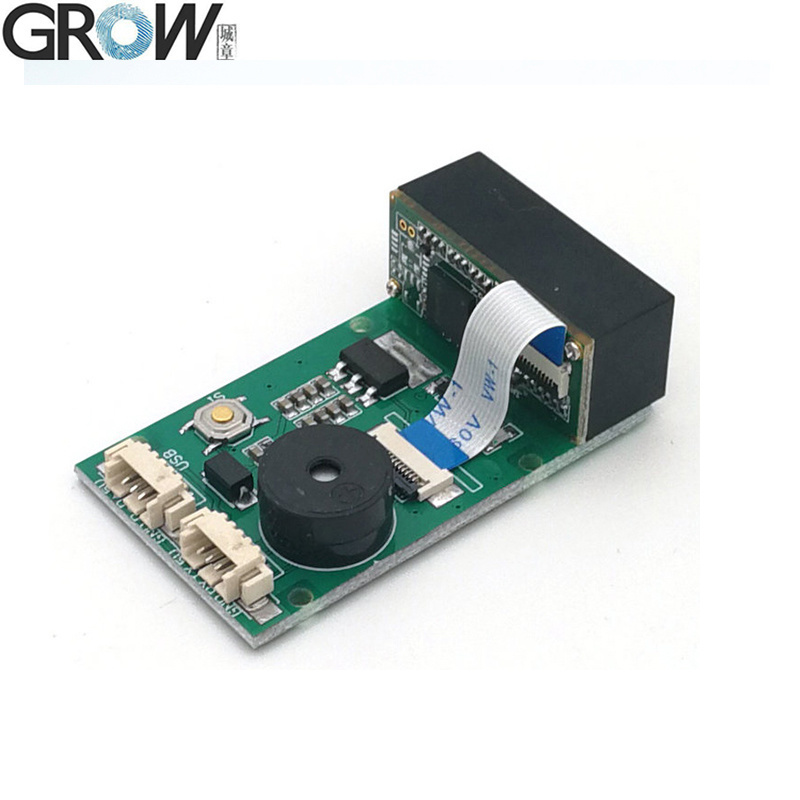

Grow GM67 USB Uart Interface 1d 2D Barcode Scanner Module Images
