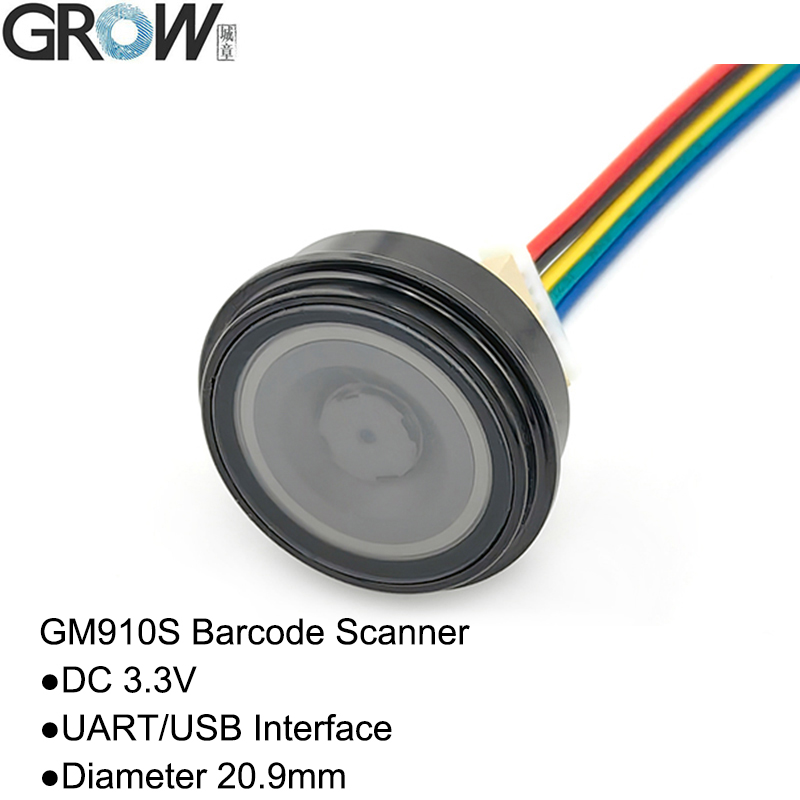

GROW GM910S Black DC3.3V USB UART 2D/1D Barcode Scanner Reader Module For Arduino Android Windows Linux Support QR Code PDF417

Product Categories

Hangzhou Grow Technology Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Certification : CE

Place of Origin : China

MOQ : 1

Payment Terms : T/T, PayPal

Supply Ability : 5000

Delivery Time : Peak Season Lead Time: within 15 workdays Off Season Lead Time: within 15 workdays

Packaging Details : Carton

Model NO. : GM910S

Operating Voltage : 3.3V

Operating Current : 100mA(Max)

Scan Mode : 640*480

Interface : TTL-232/USB

Resolution : One Dimensional Code:6mil

Weight : 3.2g

Serial Baud Rate(Uart) : 9600

Transport Package : Standard Export Carton Package

Specification : External diameter 20.9mm,Inner diameter 18.8mm, Height 7.2mm

Trademark : GROW

Origin : China

HS Code : 8473309000

Package Size : 13.00cm * 8.00cm * 9.00cm

Package Gross Weight : 0.100kg

Contact Now

Scanning Performance	Scan Mode		640*480 CMOS
	Read Code Type	2D	QR Code, Data Matrix, PDF417,maxicode,Aztec,hanxin
		1D	EAN,UPC,Code 39,Code 93,Code 128,UCC/EAN 128, Code 11,
			Codabar, Interleaved 2 of 5, Standard 25,MSI-Plessey
			GS1 Databar, Industrial 25, Matrix 2 of 5
	Accuracy of reading		One Dimensional Code:6mil
	Working Mode		Continuous Mode, Induction Mode, Manual Mode
	Depth of Field	Alipay	30-150mm
		Bus	50-120mm
	Contrast		≥25%
	Scanning angle		Intersection angle 360°, Elevation ± 55°, Deflection angle ± 55°
	Viewing Angle		Inclination 60°, Elevation 46°

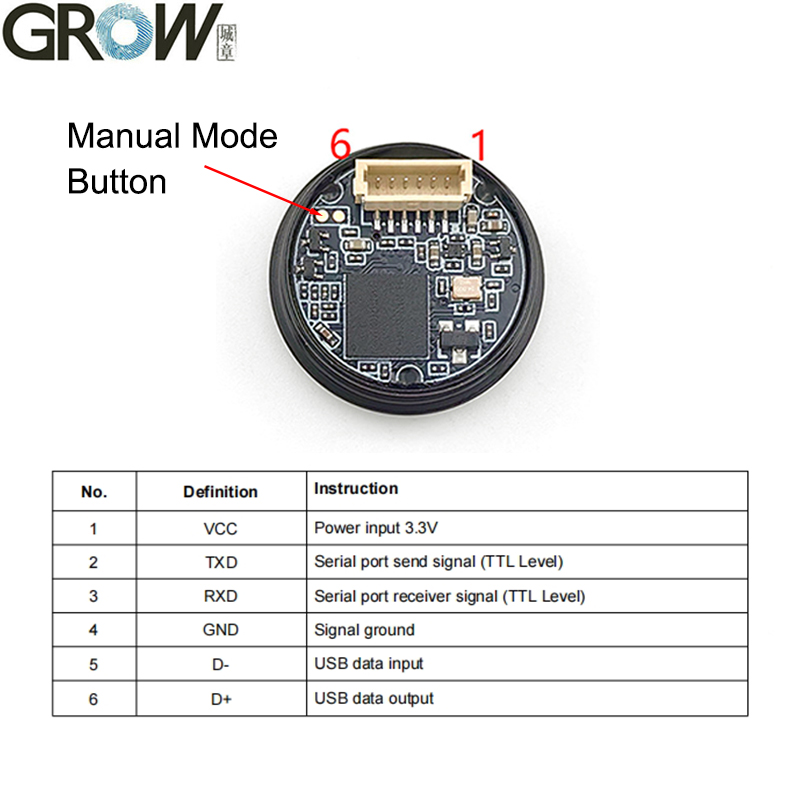

Mechanical/ Electrical Parameters	Interface		TTL-232,USB
	Dimension		External diameter 20.9mm,Inner diameter 18.8mm, Height 7.2mm
	Operating Voltage		3.3V
	Operating Current		≤100mA
Environmental Parameters	Operating Temperature		-20℃~+50℃
	Storage Temperature		-40℃~+70℃
	Operating Humidity		5%~95% (Non-Condensing)
	Environmental Light		10~100000LUX

·Provide User Manual

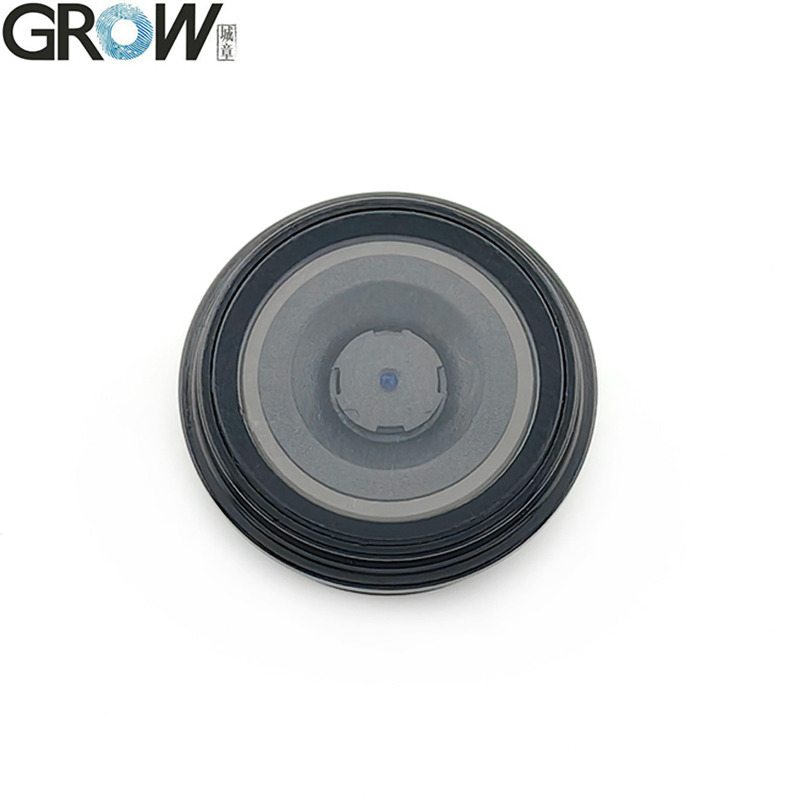

GROW GM910S Black DC3.3V USB UART 2D/1D Barcode Scanner Reader Module For Arduino Android Windows Linux Support QR Code PDF417 Images
